Tungstec tungsten carbide mining parts

BUTTONS

Our cemented carbide mining parts encompass a wide range of buttons designed for mining and drilling applications. These buttons are essential components used in the construction of drilling tools, such as drill bits, DTH hammers, and road milling tools. Renowned for their exceptional hardness, wear resistance, and toughness, our cemented carbide buttons deliver superior performance and durability in demanding mining operations.

Learn More

process flow

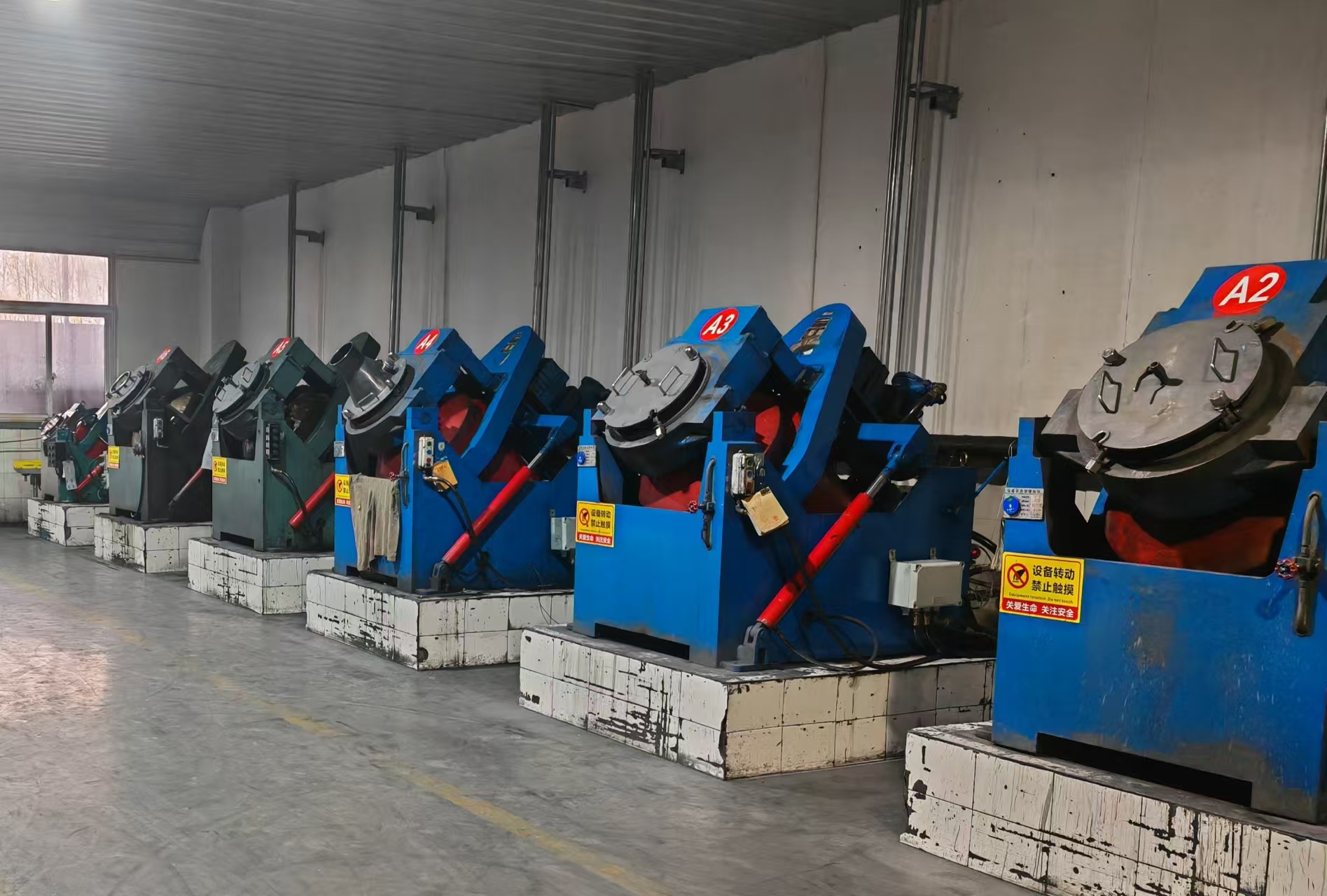

Ball milling process

Our company’s tungsten carbide and cobalt powders are all selected from the best raw material manufacturers. During the process, different proportions of raw materials and paraffin forming agent are added into the ball mill at the same time with alloy balls. Under the impact and grinding action between the raw materials and the alloy balls, the raw materials of each component are refined and evenly distributed with the addition of alcohol grinding medium.

Spray drying process

After unloading, spray drying and solid-liquid separation are carried out to make a paraffin mixture with specific composition and particle size requirements，to prepare for the following pressing and vacuum sintering.

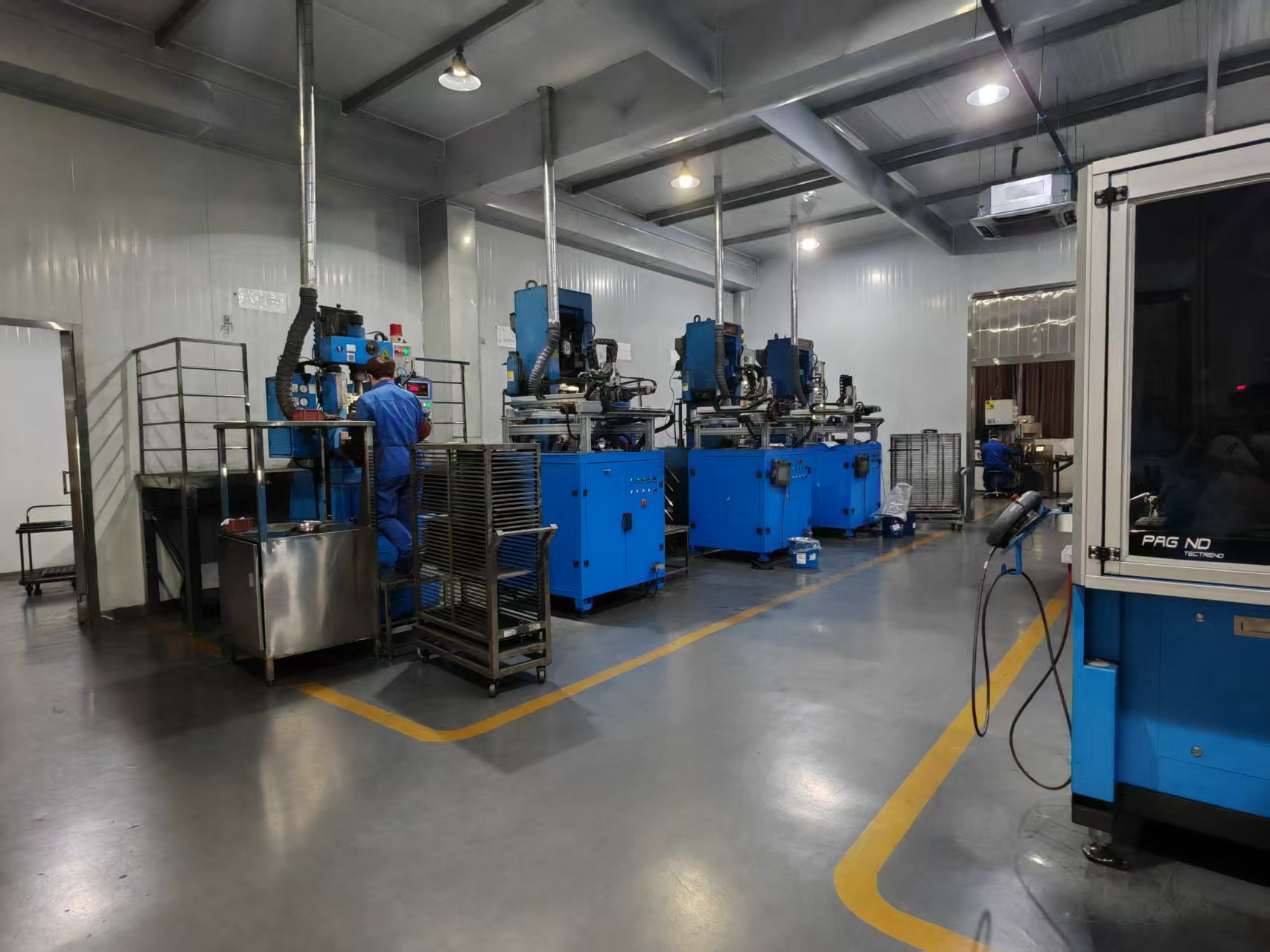

pressing

The prepared paraffin mixture is determined as qualified mixture based on inspections from our testing center. Load the mixture into the molding cavity, under the pressure of the punch, the pressure is transferred to the powder in the cavity, with the impact of the forming agent, the final mixture is compacted into a blank with a certain shape, size, density, strength and no defects.

In order to obtain high-precision blanks, our company has two-way presses, Oswalder presses and dry bag presses.

Throughout the production process, we will conduct the first inspection, process inspection, and final inspection of the product during the production process. The testing center will conduct the first inspection, process inspection, and final inspection of the blanks to monitor the entire production process.

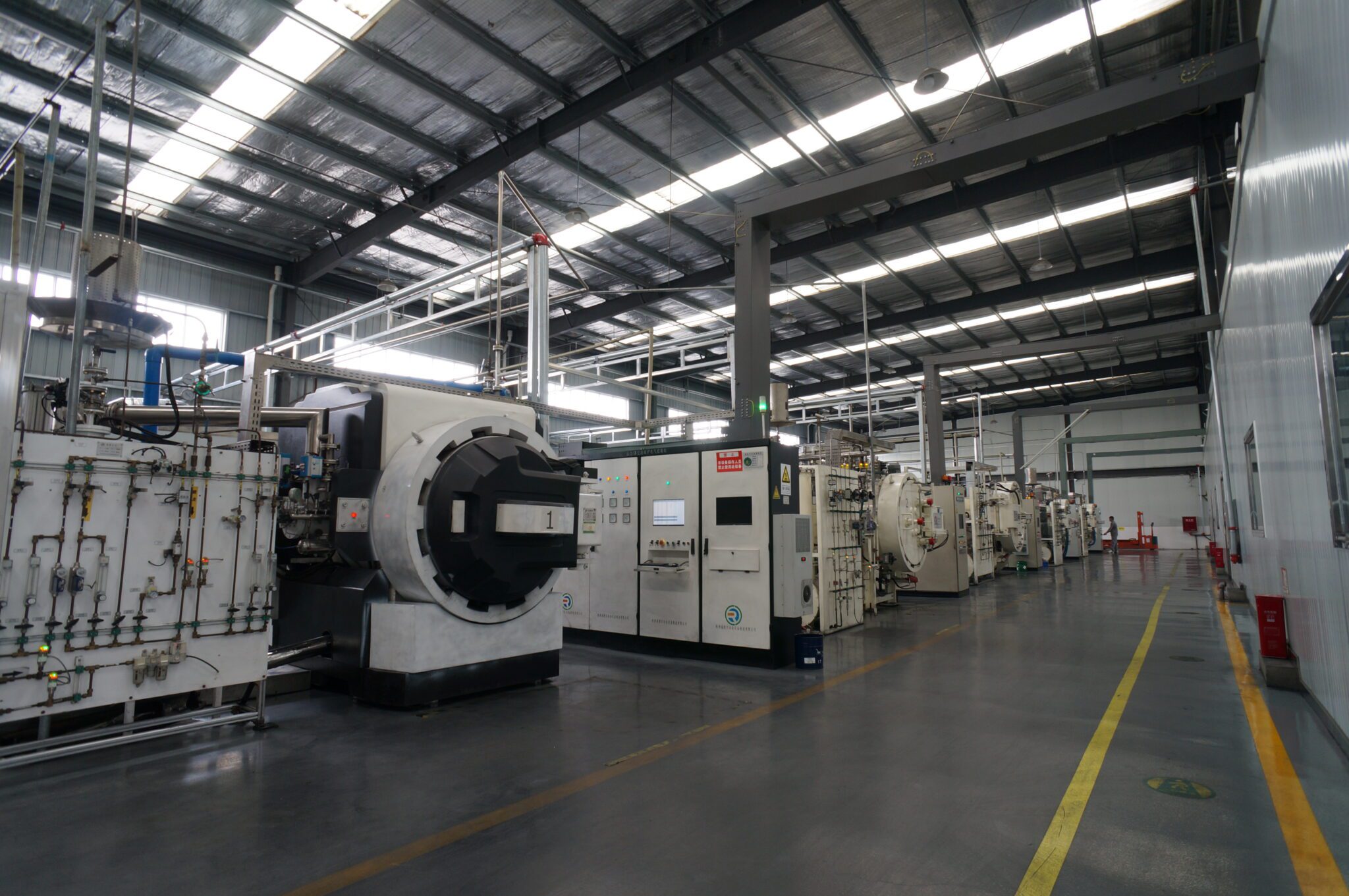

HIP sintering

Our company is equipped with 10mpa, 6mpa and various other low-pressure sintering furnaces.
Our sintered products are obtained through four continuous processes:
1. low-temperature dewaxing
2. high-vacuum and high-temperature sintering
3. cooling
4. unloading.
The entire process has a complete numerical display to facilitate the process control machine to observe problems.

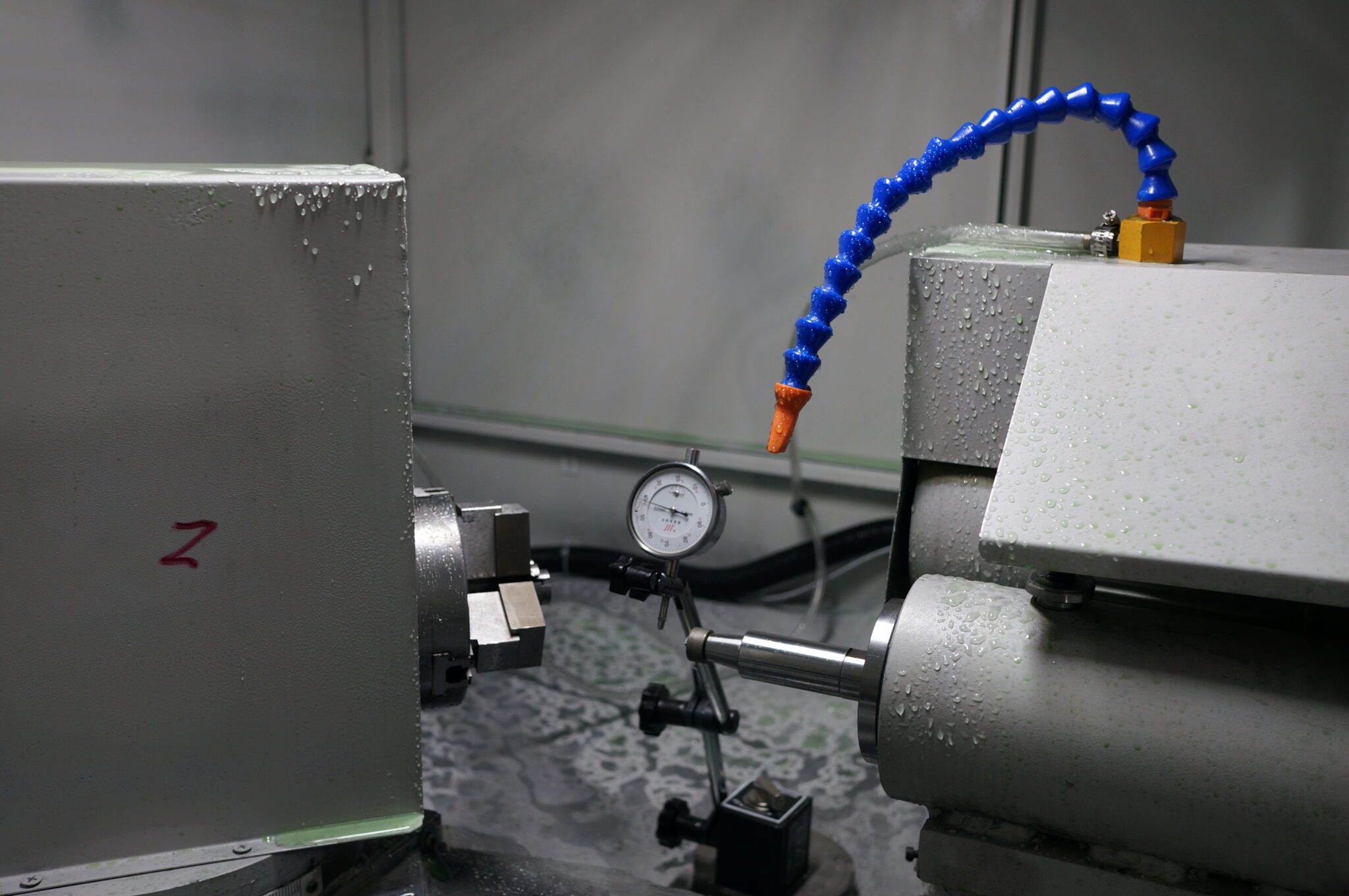

GRINDING

Our company uses a large number of CNC machines. The grinding process ensures product consistency and can achieve one operator can operate multiple grinders because it is fully automatic, which reduces the requirements for personnel and saves energy consumption at the same time. During the processing, the operators are required to proceed initial-inspection, operator-inspection, and process inspection of all products. The testing center will review the self-inspection, and also have auditor-inspections, patrol inspections (routing inspection, procedure), process inspections and full inspections of the final product.

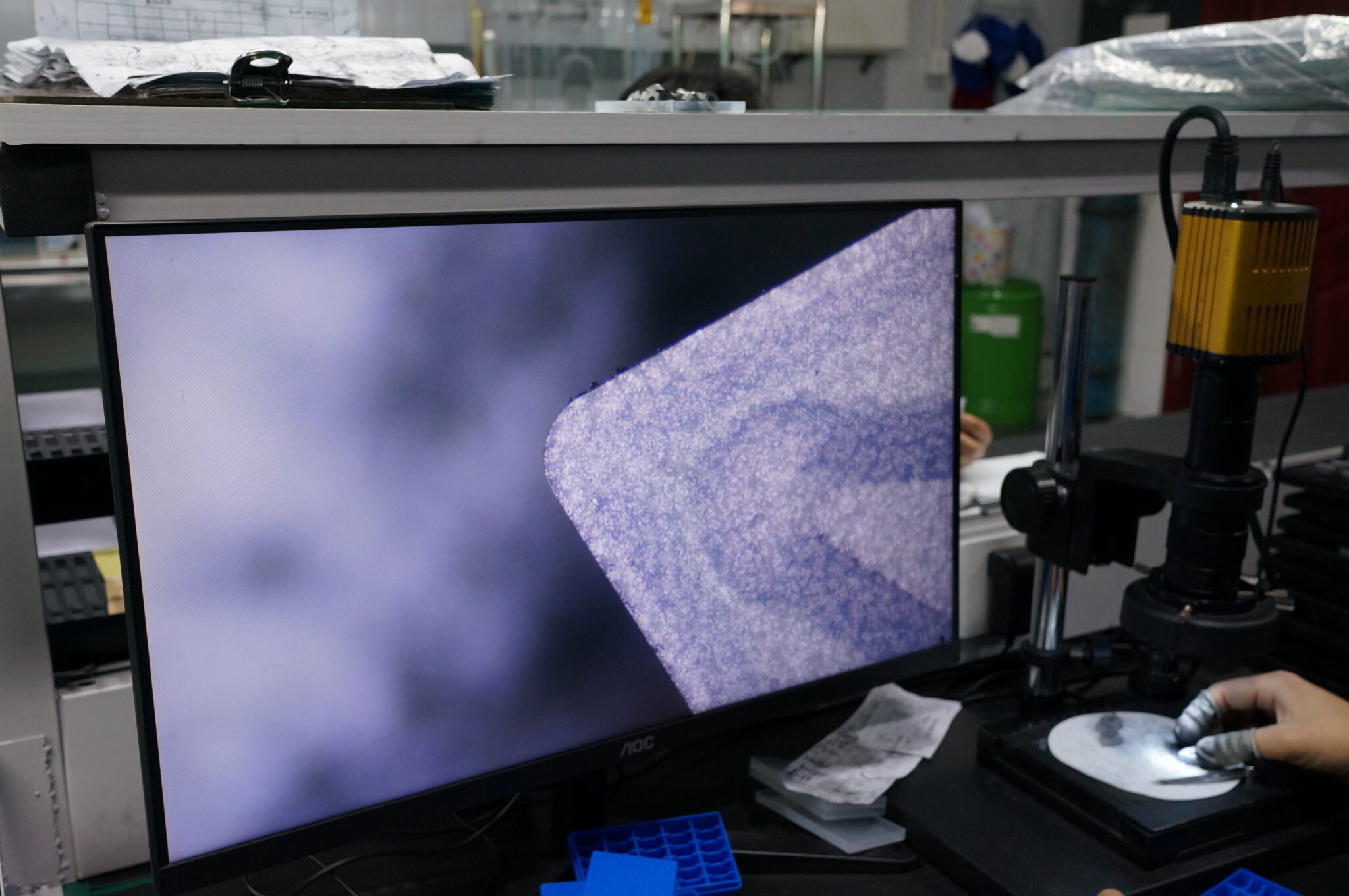

testing

In order to meet a higher expectations of our customers, in addition to the conventional physical performance testing equipment, we are also equipped with Alicona 3D profile measuring instrument, which can achieve measurements of complex surfaces of high-precision parts.
In the measurement process, high-speed, high-precision, high-repeatability, and large-area integrated measurement can be realized at the same time.
